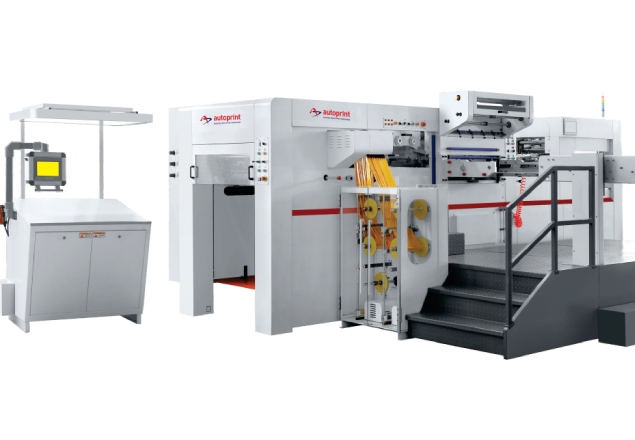

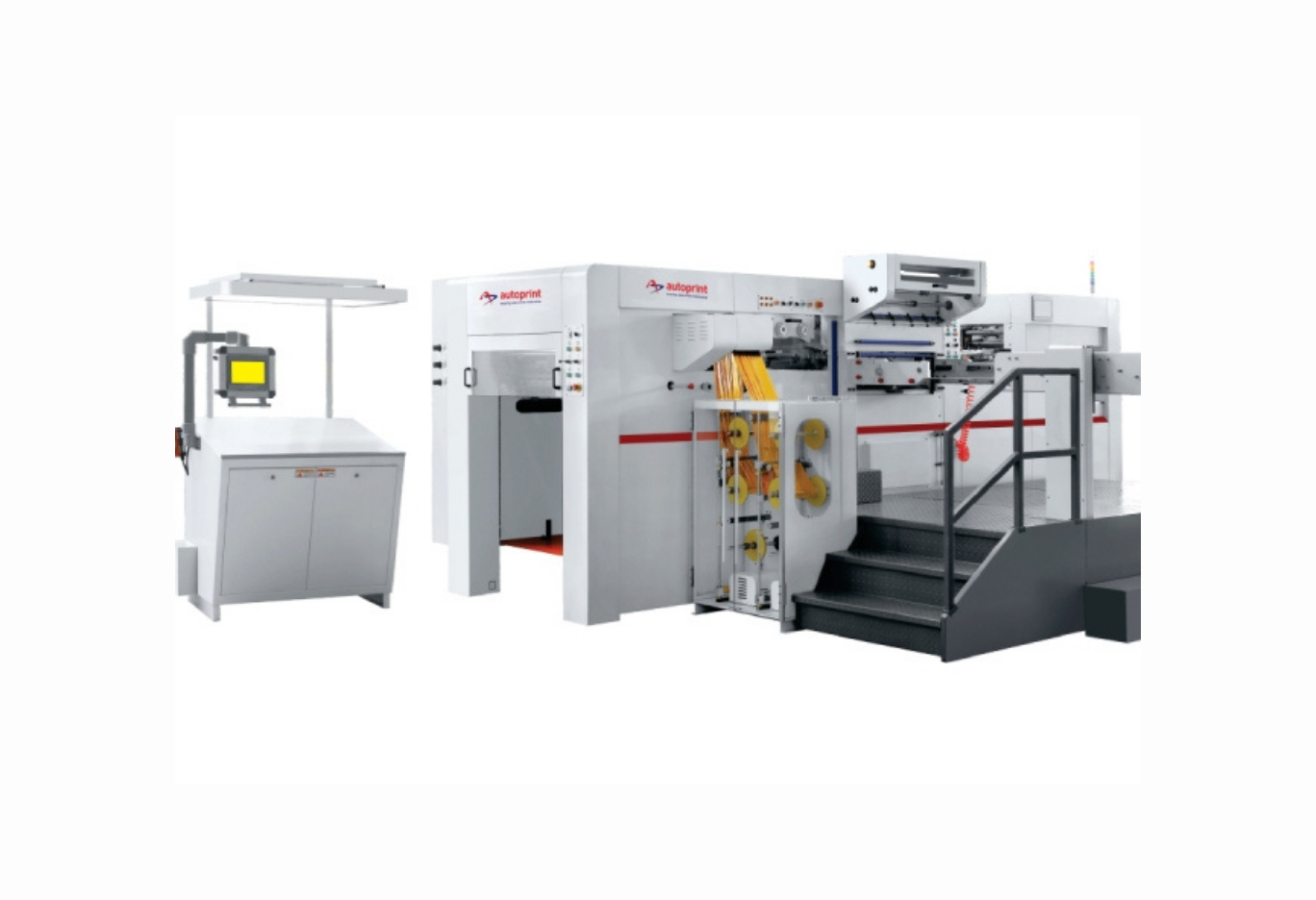

Autoprint Dextra 105 HF
Quick Specifications
Machine Type
Automatic High-Speed Hot Foil Stamping & Die Cutting Machine
Feeding System
Non-Stop Stream Feeder with Pre-Piling
Max Speed
Up to 7500 sph (Die Cutting) / 6500 sph (Foil Stamping)
Foil Pulling
Multi-Axis Servo-Driven Longitudinal & Transverse System
Industrial Luxury Embellishment & Cutting Solution
The Autoprint Dextra 105 HF is a premier, large-format automatic hot foil stamping and die-cutting machine engineered for the high-end luxury packaging market. Combining a heavy-duty press structure with an intelligent, multi-axis servo foil feeding mechanism, it allows large print houses to execute high-speed metallic foil stamping, blind embossing, holographic placement, and precision die-cutting on a massive industrial scale.
Advanced Multi-Axis Servo Foil Feed System
Equipped with a highly sophisticated foil pulling architecture, the machine features independently controlled longitudinal and transverse foil feeding shafts driven by high-precision servo motors. This dual-direction capability permits complex foil layouts, eliminates overlapping waste, and ensures optimal foil consumption during intricate logo or hologram stamping runs.
Multi-Zone Digital Heating Matrix
To ensure flawless foil transfer and uniform temperature distribution across the expansive 1050 × 750 mm format, the heating plate is divided into a matrix of multiple independent, digitally controlled heating zones. Operators can fine-tune individual zone temperatures via the main console to compensate for varying design densities, preventing foil burning or incomplete adhesion.
Non-Stop Continuous Feeding & Separation
Designed for non-stop industrial output, the machine incorporates a heavy-duty stream feeder with adjustable suction head angles and side-blowing air nozzles to separate heavy boards smoothly. Coupled with an incline-type feed table and an integrated pre-piling facility, it allows operators to stack incoming stock without pausing production.
Dynamic Pull/Push Side Lay Registration
The high-accuracy registration system features versatile side lays that can switch between pull and push modes to accommodate different stock qualities and thicknesses. Accompanied by multiple front guide sensors and an electro-mechanical double sheet detector, the system guarantees micro-level registration alignment before entering the impression cylinder.
Heavy-Duty High-Stability Press Frame
Constructed with an ultra-rigid cast iron frame treated for stress relief, the press handles demanding workflows with ease under high pressure configurations. The main drive features a durable pneumatic clutch-brake system and an anodized aluminum alloy gripper bar assembly, propelled by an augmented-strength imported transmission chain for vibration-free processing at 7500 sph.
Technical Specifications
Specifications
Model
Autoprint Dextra 105 HF
Max Paper Size
1050 × 750 mm
Min Paper Size
400 × 360 mm
Max Foil Stamping Area
1040 × 720 mm
Heating System
Multi-Zone Independent Micro-Processor Controls
Production Features
Max Die-Cutting Speed
7500 sheets/hour
Max Foil Stamping Speed
6500 sheets/hour
Substrate Compatibility
Cardboard (80–2000 gsm) & Corrugated ($\le$ 4 mm)
Control Interface
Centralized Touch-Screen PLC with Digital Diagnostics
Safety Mechanisms
Torque Limiters, Photoelectric Barriers & Safe Interlocks
