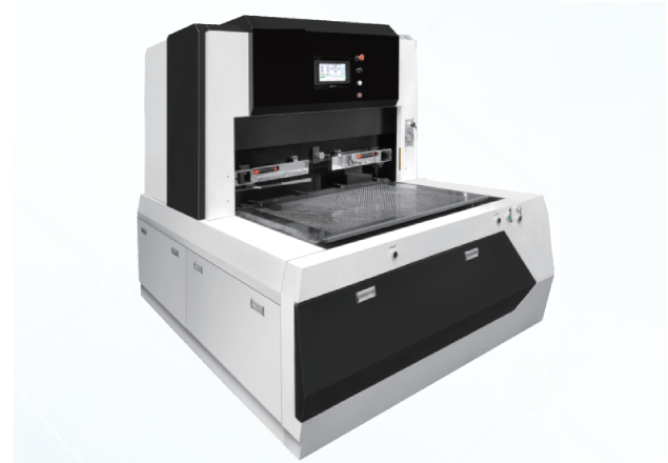

Autoprint Blankmatic BM 1080 FS
Quick Specifications
Machine Type
Automatic Blanking Machine with Full Stripping & Window Hole Removing
Stripping Speed
Up to 25 strokes/min (Model dependent)
Max Sheet Size
1080 x 780 mm
Drive System
High-Precision Servo Motor & Ball Screw System
Full Stripping & Window Hole Removing Solution
The Autoprint Blankmatic BM 1080 FS is an advanced automatic blanking system designed to maximize post-press efficiency and deliver exceptional product quality. By offering complete waste stripping alongside an integrated window hole removing feature, it removes manual labor bottlenecks and significantly optimizes the downstream workflow for modern packaging enterprises.
Precision Servo & Motion Architecture
Engineered for flawless accuracy during the high-speed stripping process, the machine incorporates a high-precision servo motor paired with robust double guide rails and a heavy-duty ball screw transmission system. This structural configuration guarantees ultra-precise registration and repeatable micro-tolerances sheet after sheet.
Advanced Hydraulic Power Plant
The system features the latest in industrial hydraulic technology, powered by an integrated motor layout. To handle demanding, continuous multi-shift operations without structural pressure drop-offs, it includes a dedicated oil temperature cooling system that ensures uniform hydraulic force up to 100 bar.
Intuitive Job Control & HMI Interface
Operated through a high-speed PLC control system linked to a user-friendly touch screen interface. The interactive Human Machine Interface (HMI) streamlines machine setups, simplifies tool positioning adjustments, and includes digital performance monitoring alongside strict electrical circuit safety metrics.
Autoprint Aloft Material Lifting Companion
To eliminate operator fatigue and streamline workflow speed, the system can be configured with the Autoprint Aloft Paper Lifting Machine. This essential mechanical accessory handles heavy piles automatically, safely lifting bulk paper stocks directly to the bench working height of 850 mm without physical strain.
Versatile Model Range & Footprint
The Blankmatic lineup offers tailored solutions across multiple configurations, including the high-capacity BM 1080 FS. This versatility allows print facilities to effortlessly process stripping sizes down to 30 x 30 mm across diverse commercial sheet layouts.
Technical Specifications
Specifications
Max Sheet Size
1080 x 780 mm
Min Sheet Size
600 x 400 mm
Bench Height
850 mm
Min Stripping Size
40 x 80 mm
Max Pressure
100 bar
Production Features
Stripping Speed
5 strokes/min (Full Stripping)
Max Pile Height
60 mm to 100 mm (Model dependent)
Power Configuration
380V / 50/60 Hz / 5.5 kW Max Consumption
Air Consumption
2 L/Min at 4-7 Bar Compression
Machine Weight
1400 Kg to 1800 Kg (Depending on model layout)
