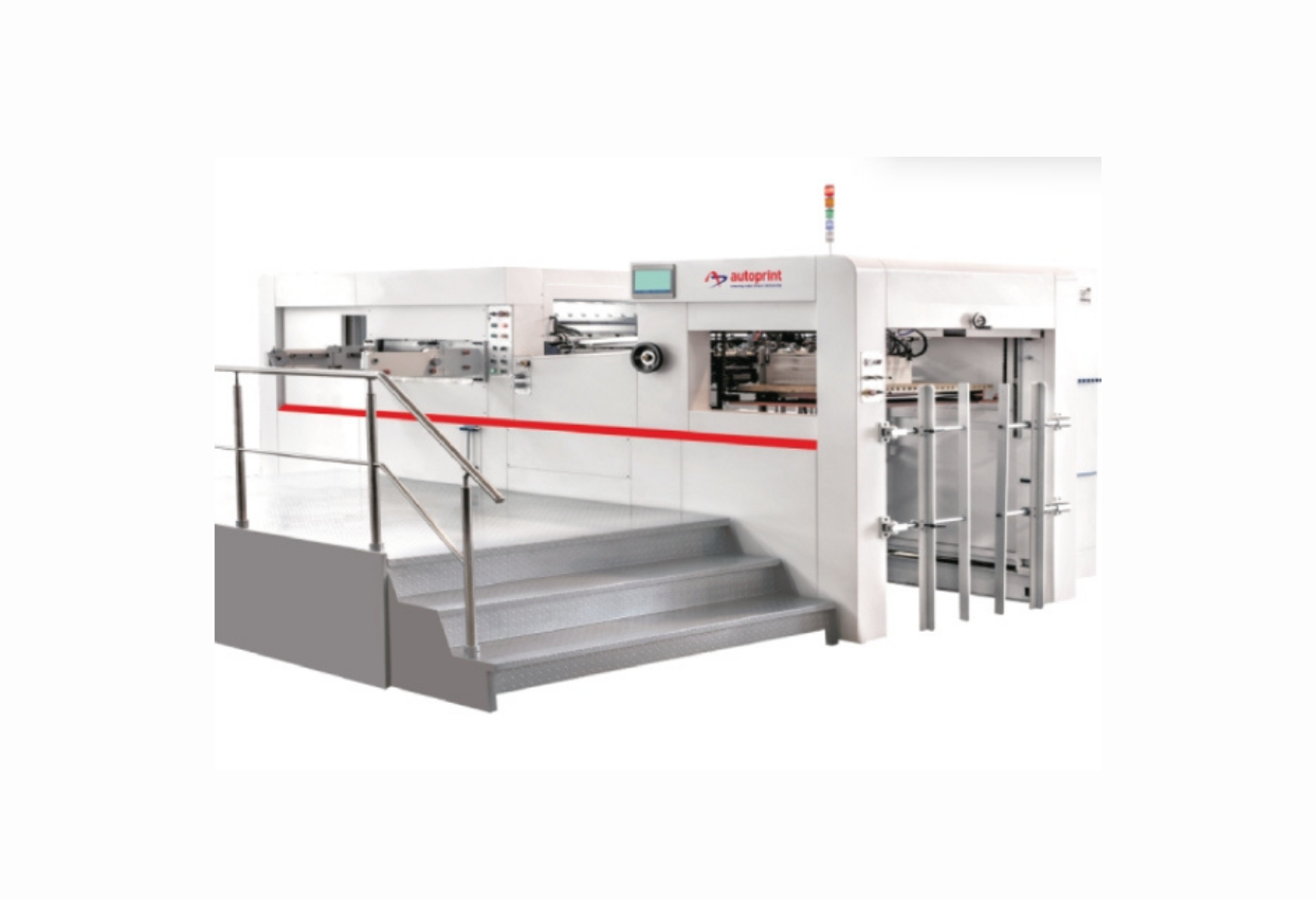

Autoprint Dextra 105
Quick Specifications
Machine Type
Automatic Die Cutting & Foil Stamping Machine
Feeding System
Non-Stop Feeding & Delivery System
Max Speed
Up to 7500 sheets/hour
Paper Thickness
80 to 2000 gsm (Corrugated $\le$ 4 mm)
Industrial High-Volume Finishing Solution
The Autoprint Dextra 105 is a high-performance automatic foil stamping and die cutting machine engineered to satisfy the growing demands of large-format printers and high-volume packaging units. Adopting advanced pneumatic and servo-driven processing technology, it brings modern, cutting-edge precision to intricate packaging workflows.
High-Precision Advanced Feeder Section
Equipped with a non-stop paper feeding mechanism featuring adjustable suction height and angle control. Imported air blowing systems ensure completely smooth paper travel, while an incline-type paper moving table and pre-piling facility maximize production efficiency by allowing continuous stock loading.
Pinpoint Feeding & Registration
The machine incorporates a high-accuracy feeding positioning section equipped with pull-type and push-type side-lays that can be adapted dynamically to the paper type. This versatile arrangement guarantees exceptional alignment across various substrates, maintaining rigid register limits at full operational capacity.
Heavy-Duty Die Cutting System
Built to handle demanding workflows, the robust structural design effortlessly processes thick materials under a high max pressure rating of 300 N/cm². The driving gear setup maximizes die-cutting speed, while a specialized pneumatic locking mechanism and air clutch prevent the die cutting plate from drooping or separating.
Durable Gripper & Chain Architecture
The gripper bars are manufactured from an extra hard aluminum alloy treated with surface anodization to ensure flawless precision at 7500 sheets per hour. Driven by an imported transmission chain with 45% increased structural strength, the system achieves maximum stability.
Comprehensive Safety & Control Panel
Featuring a centralized high-speed PLC-based control system with a user-friendly touch screen interface. Operational safety is reinforced by top-tier electrical components, a programmable lubrication system, and an integrated high-precision segmentation and torque limiter to prevent damage from external forces.
Technical Specifications
Specifications
Model
Autoprint Dextra 105
Max Paper Size
1050 × 750 mm
Min Paper Size
400 × 360 mm
Max Cutting Size
1040 × 720 mm
Inner Chase Size
1080 × 745 mm
Production Features
Maximum Speed
7500 sheets/hour
Processed Substrates
Cardboard (80–2000 g/m²) & Corrugated ($\le$ 4 mm)
Max Pressure
300 N/cm²
Gripper Margin
8 mm
Total Power / Weight
20 kW / 16.0 Tons
