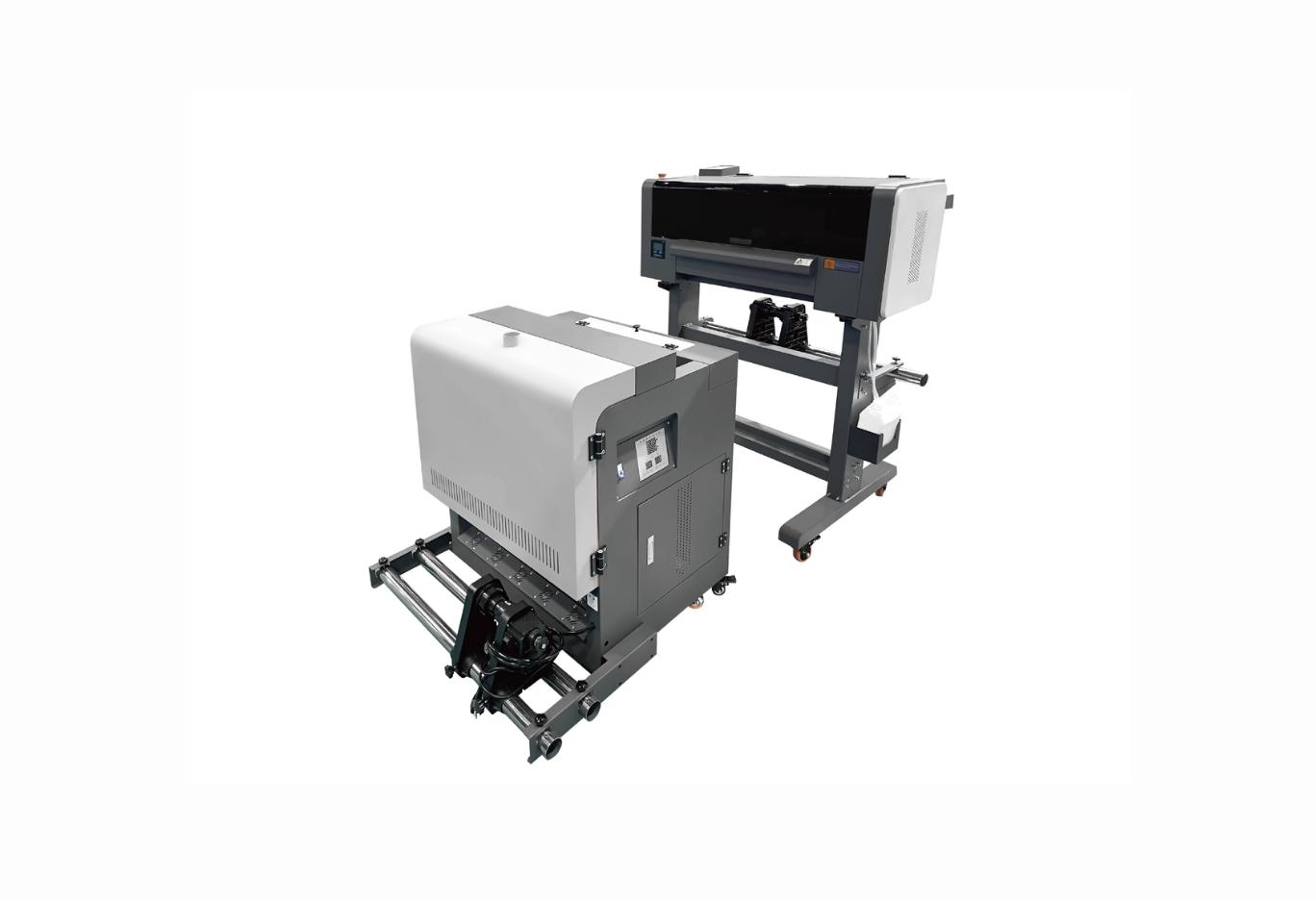

ALPHA A3 DTF PRINTER
Quick Specifications
Machine Type
Automatic A3 Direct-to-Film (DTF) Printer
Printhead
2 × EPSON TFP
Max Speed
Up to 8 sqm/hr (4 Pass)
Ink Configuration
Textile Pigment Ink (C/M/Y/K/W)
Professional Direct-to-Film (DTF) Solution
The ALPHA A3 DTF Printer is a compact and efficient solution designed for high-quality textile transfers. By utilizing advanced film-based printing, it allows businesses to create vibrant, durable designs that can be transferred onto a wide variety of garments regardless of color or fabric type.
Dual Epson TFP Printhead Performance
Equipped with two high-precision EPSON TFP printheads, this system ensures professional-grade output with excellent color density. The dual-head configuration allows for simultaneous printing of CMYK colors and White ink, significantly increasing production speed while maintaining sharp detail.
Versatile Garment Applications
The ALPHA A3 DTF is engineered for extreme versatility in the apparel market. It produces high-quality transfers suitable for a broad range of products, including T-shirts, sweatshirts, jeans, caps, and handbags, providing a soft-hand feel and excellent wash fastness.
High-Quality Industrial Components
Built for reliability, the printer features a high-quality rail system for smooth carriage movement and a specialized ink cap station to maintain printhead health. The robust construction ensures stable operation during continuous printing runs, reducing downtime and maintenance.
Integrated Powder Shaking System
To provide a complete end-to-end workflow, the printer works in tandem with a dedicated powder shaker unit. This automated system evenly applies and cures the adhesive powder to the printed film, preparing the transfers for immediate heat pressing onto the final substrate.
Professional Software & Ease of Use
The system is bundled with popular Photoprint RIP software, optimized for Windows 10 environments. This professional interface allows for precise control over ink limits and white ink layering, ensuring cost-effective production with consistent results for both short runs and high-volume orders.
Technical Specifications
Technical Specifications
Model
ALPHA A3 DTF
Max Printing Width
320 mm
Printhead Quantity
2
Power Consumption
Printer: 350W / Shaker: 2400W
Machine Dimensions
1160 x 500 x 490 mm
Production Features
Production Speed
8 sqm/hr (4P) / 6 sqm/hr (6P) / 4 sqm/hr (8P)
Ink Type
Textile Pigment Ink
Software
Photoprint RIP
Weight
69 KG (Net) / 80 KG (Gross)
Operating Environment
20-28°C; Humidity 65%-75%
