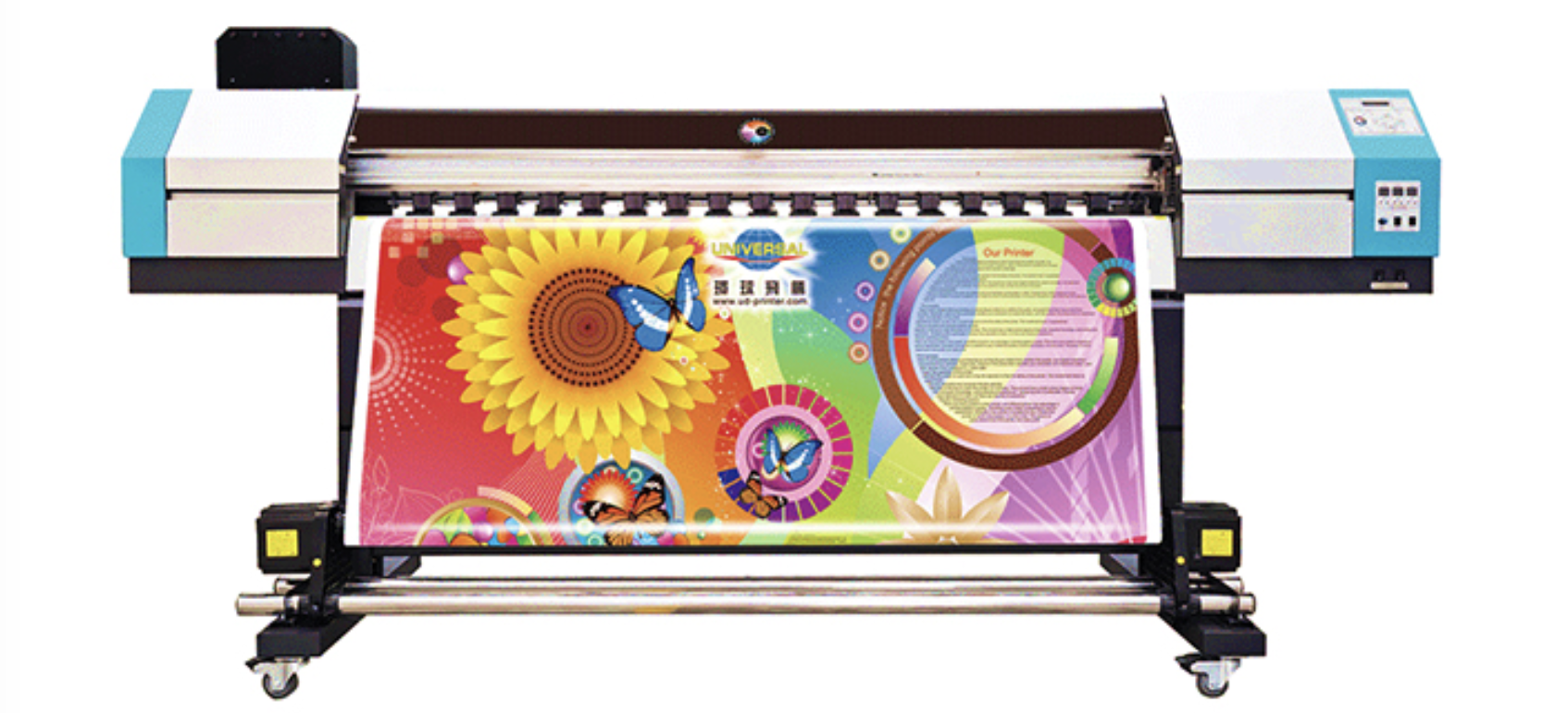

Alpha 1800-i2 UV Roll-to-Roll Printer
Quick Specifications
Print Speed
Up to 20 sqm/hr (Production Mode)
Resolution
Up to 2400 DPI
Media Width
1.80 m
Power
AC 220–240V, 50/60Hz, 2500 W
Entry-Level UV Roll Printing Solution
Alpha 1800-i2 is designed as a next-generation UV roll-to-roll printer that offers excellent performance and reliability, making it ideal for businesses transitioning from eco-solvent printing to UV technology.
Advanced Epson PrecisionCore Technology
Equipped with 2 × Epson i3200-E1 PrecisionCore MicroTFP printheads, delivering precise ink droplet placement with variable drop sizes for sharp images and smooth gradients.
High-Resolution Printing
Supports up to 2400 DPI resolution, ensuring vibrant colors, detailed graphics, and professional-quality output for signage and display printing.
Efficient Roll-to-Roll Media Handling
Supports roll media up to 30 kg, enabling stable printing on flexible substrates such as vinyl, banner, mesh, canvas, and backlit media.
Continuous Ink Supply System
Integrated UV ink supply system ensures consistent ink flow, reduces downtime, and improves overall printing efficiency.
Professional RIP Software Integration
Comes with SAi PhotoPRINT RIP software, offering advanced color management, accurate raster processing, and optimized production workflow.
Technical Specifications
Print Specifications
Print Technology
PrecisionCore MicroTFP Printheads
Printhead
2 × Epson i3200-E1
Drop Size
3.5 – 12.3 pl
Maximum Resolution
2400 DPI
Colour Configuration
CMYK
Print Speed
Production Mode: 18 – 20 sqm/hr, Quality Mode: 10 – 14 sqm/hr
Media Handling
Media Width
1.80 m
Media Type
Vinyl, Mesh with Liner, Photo Paper, Banner, Backlit Flex, Canvas
Feeding System
Roll-to-Roll Media Feeding (30 kg capacity)
Ink System
UV Ink with Continuous Ink Supply System
Unwind System
Integrated Roll Feeding System
Rewind System
Automatic Roll Rewinding System
