Saga SG-ASF420 Auto Sheet Feeding Flatbed Cutter
Quick Specifications
Cutting Speed
200 – 700 mm/s
Cutting Force
Blade: 0 – 1900gf, Creasing: 0 – 1900gf
Maximum Cutting Size
420mm × 672mm
Maximum Paper Weight
Up to 600g (varies by material)
Intelligent 7-Inch Touch Screen
Full capacitive touch interface with enhanced intelligent interaction for efficient workflow management.
Automatic Sheet Feeding System
Pneumatic auto feeding system with independent lifting feeder supports up to 18cm stack height (approx. 600 sheets depending on thickness).

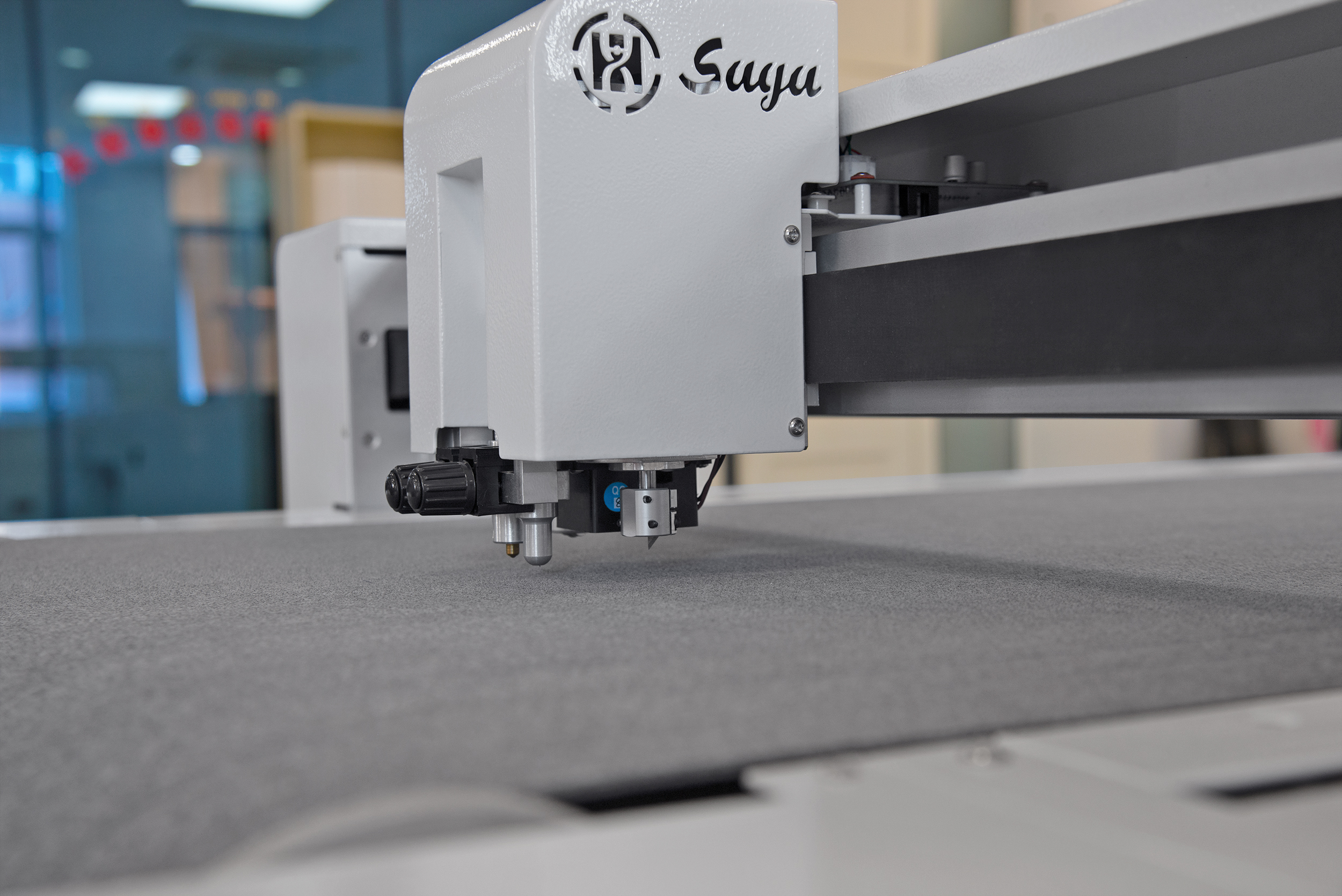

Four Knife Head Design
Die-cutting and indentation with multiple tool combinations for advanced production requirements.
High-Precision CCD Camera Positioning
Digital CCD camera with Mark / QR code recognition for accurate contour and matrix cutting.
Vacuum Suction Media Hold
Stable sheet handling with vacuum suction system for precise cutting on thick and specialty materials.
Multi-Mode Connectivity
USB, TCP/IP, WiFi, U Disk
Technical Specifications
Print / Cutting Technology
Working Motor
High-Power Brushless Servo Motor (X & Y Axis)
Positioning Sensor
Digital CCD Camera
Control Panel
7-Inch Capacitive Touch Screen
Number of Tool Holders
Double Tool Holders (Tangential Blade Supported)
Blade Types
Blade / Creasing Tool / Pen
Media Hold Method
Vacuum Suction
Cutting Specifications
Maximum Feeding Size
A2 (420mm × 594mm)
Maximum Cutting Size
420mm × 672mm
Sheet Stack Height
Up to 18cm (Approx. 600 sheets depending on thickness)
Cutting Speed
200 – 700 mm/s
Scanning Speed
Approx. 5 seconds
Cutting Force (Blade)
0 – 1900gf
Creasing Force
0 – 1900gf
