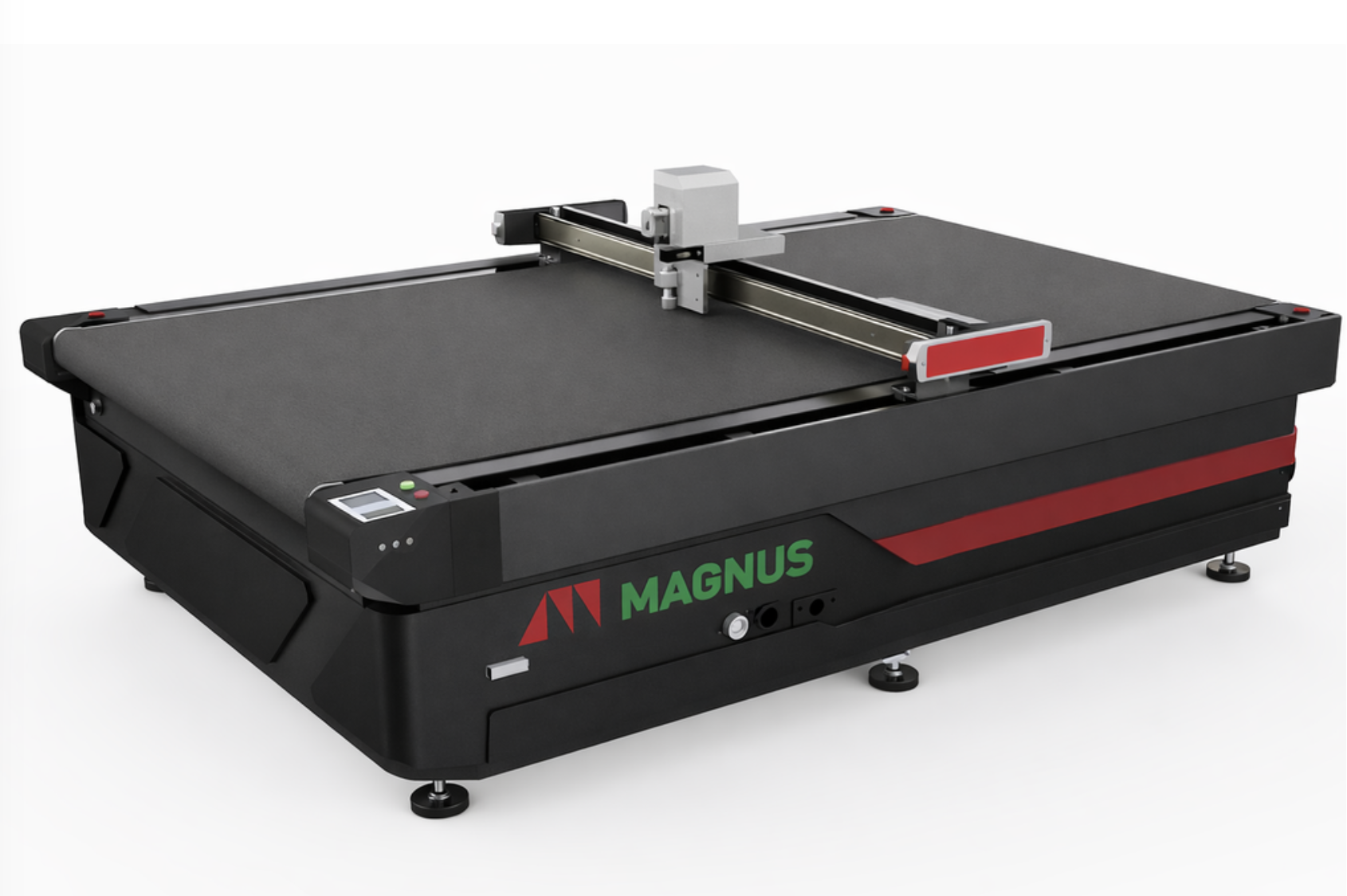

Magnus Smart Cutter 1625
Quick Specifications
Cutting Speed
≤ 1500 mm/s
Cutting Depth
≤ 25 mm (Up to 45 mm Optional)
Bed Size
1600 mm × 2500 mm
Cutting Accuracy
≤ 0.1 mm
Large-Format Digital Cutting System
Magnus Smart Cutter 1625 is a professional large-format digital cutting plotter designed for precision cutting, creasing, oscillating cutting, and drawing. It supports a wide variety of rigid and flexible materials up to 25 mm thick, making it ideal for packaging, display, and industrial applications.
Dual Modular Tool Stations
Equipped with two independent modular tool stations that allow seamless tool switching without interrupting production, ensuring higher efficiency and cutting precision across different materials.
High-Efficiency Vacuum Worktable
The aviation-grade aluminum vacuum table ensures strong material fixation and stability during high-speed cutting operations, improving cutting accuracy and reliability.
Integrated Camera for Precision Registration
Built-in crop mark detection camera enables accurate contour cutting and creasing of pre-printed materials, ensuring perfect alignment with printed graphics.
Wide Material Compatibility
Processes a broad range of materials including PVC film, PET film, foam boards, corrugated sheets, textiles, leather, acrylic, fiberglass, carbon fiber composites, and packaging boards.
High-Performance Servo Motor System
Powered by Panasonic A6 series servo motors and drives, delivering smooth motion control, high speed, and exceptional cutting precision.
Technical Specifications
Cutting Specifications
Model
Magnus Smart Cutter 1625
Bed Size
1600 mm × 2500 mm
Cutting Speed
≤ 1500 mm/s
Cutting Depth
≤ 25 mm (Up to 45 mm Optional)
Cutting Accuracy
≤ 0.1 mm
Machine System
Media Fixture Method
Vacuum System (Aviation Grade Aluminum Platform with Belt Drive)
Drives & Motor
Panasonic A6 Series Servo Motors & Drives
Pump Power
9 KW
Operating Environment
Temperature: 0°C – 40°C, Humidity: 20% – 80% RH
Supported File Formats
DXF, HPGL, PLT, AI
